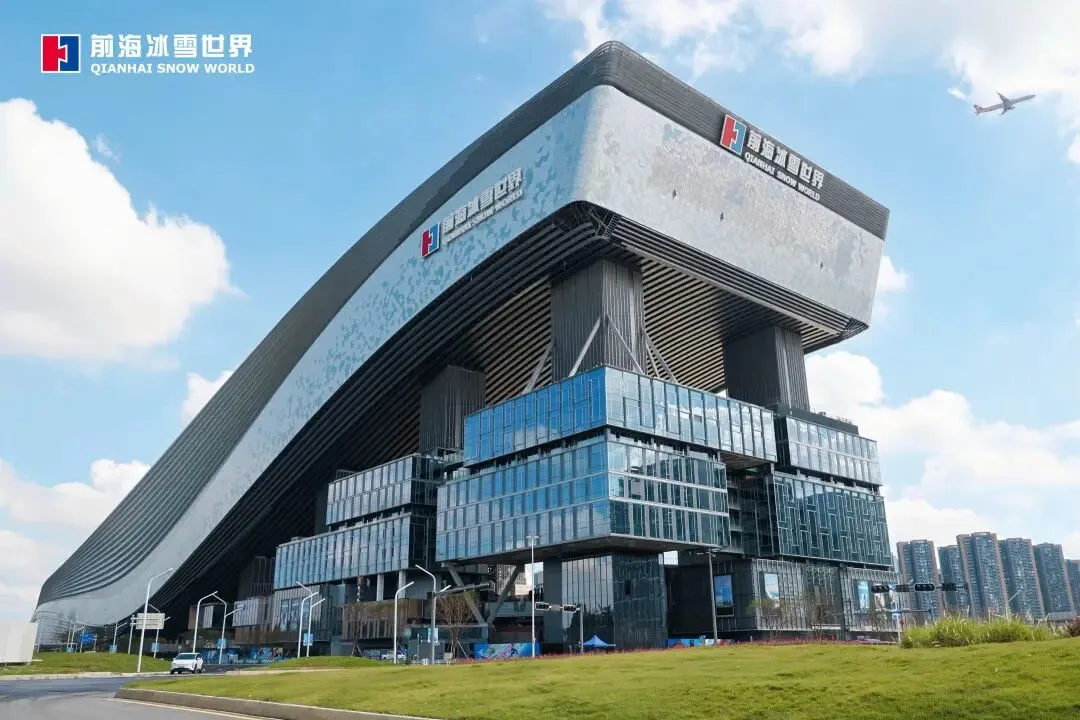

深圳·前海冰雪世界，这个当前全球规模最大、海拔最低的室内滑雪场项目，是国内建筑第五立面大规模应用光伏建筑一体化技术的典范案例。项目将建筑光伏一体化技术融入设计，为城市“第五立面”可再生能源开发提供了可推广、可复制的优质解决方案。
Shenzhen - Qianhai Ice and Snow World, this is the current largest indoor ski resort project in the world and the lowest-altitude one. It is a typical case of large-scale application of photovoltaic building integration technology on the fifth facade of buildings in China. The project integrates building photovoltaic integration technology into the design, providing a highly scalable and replicable high-quality solution for the development of renewable energy on the "fifth facade" of the city.

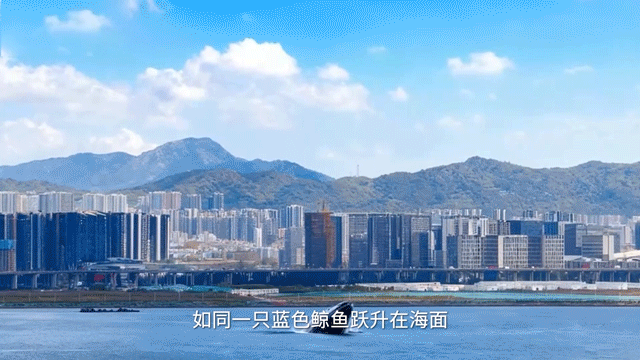

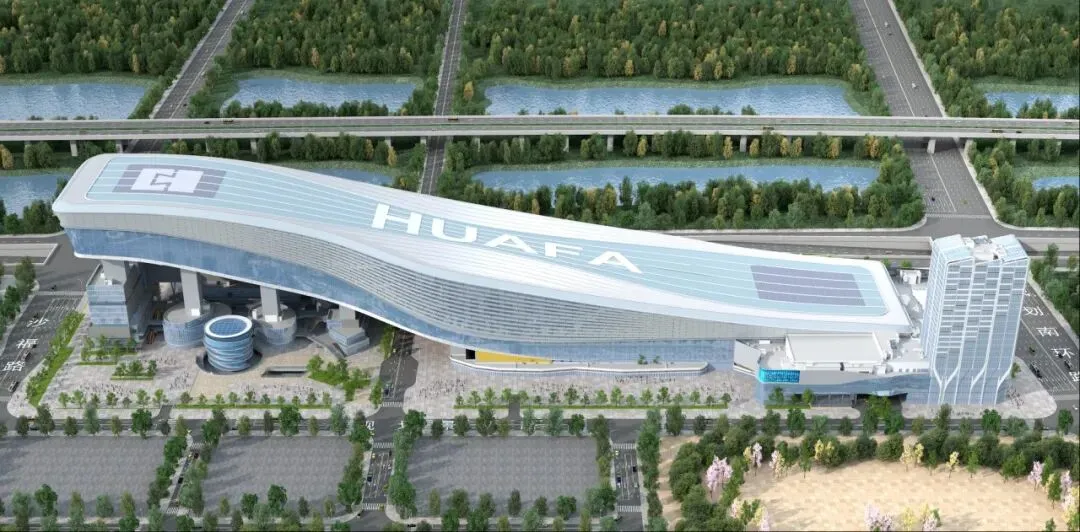

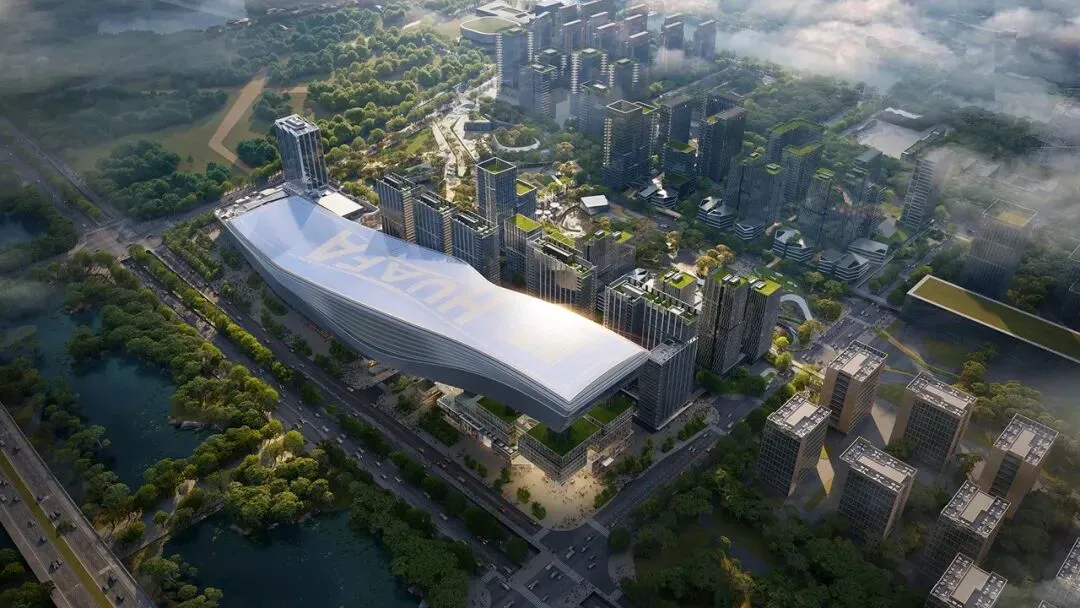

面对沿海高风压、高盐雾环境、兼顾高发电与色彩美学等多重挑战，项目团队选用远东绿能自主研发的LIGHT系列BIPV产品，通过独特的链接结构和色彩定制化技术，在保障结构安全、高发电的基础上，打造业主方专属品牌标识，实现“建筑即风景、光伏即装饰”的效果，成为城市第五立面的亮眼景观。Facing multiple challenges such as high wind pressure and high salt spray in coastal areas, as well as the need for high power generation and aesthetic color design, the project team selected the LIGHT series BIPV products independently developed by Far East Green Energy. Through unique connection structures and customized color technology, they ensured structural safety and high power generation while creating a brand identity exclusive to the client. This achieved the effect of "building as scenery, photovoltaic as decoration", making it a prominent landscape on the city's fifth facade.△鸟瞰效果图

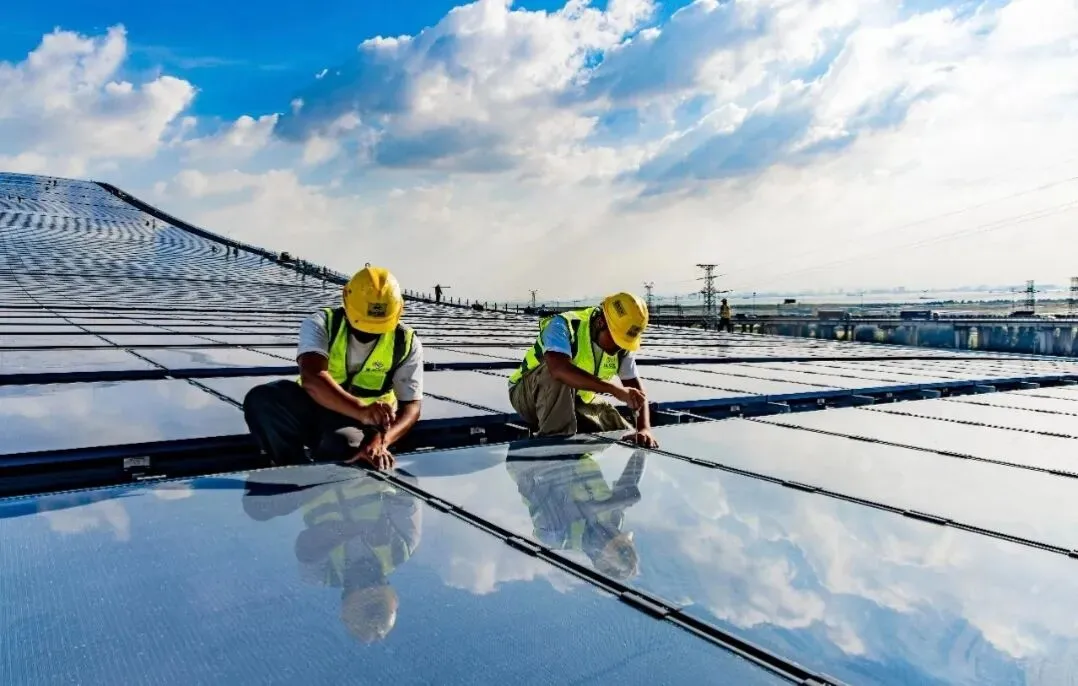

冰雪世界项目的光伏屋面应用面积达3.5万平方米，总装机容量达6433kW，年发电量超600万度，可满足项目约20%年度用电需求。这一成果相当于每年减少碳排放5100吨、植树27.29万棵，为高能耗场馆注入稳定绿色动能。相当于在城市中心培育30个足球场面积的“绿色森林”。
The photovoltaic roof of the Ice and Snow World project covers an area of 35,000 square meters, with a total installed capacity of 6,433 kW and an annual power generation of over 6 million kilowatt-hours. This can meet approximately 20% of the annual electricity demand of the project. This achievement is equivalent to reducing carbon emissions by 5,100 tons and planting 272,900 trees each year, injecting stable green energy into high-energy-consuming venues. It is equivalent to cultivating a "green forest" with an area of 30 football fields in the city center.

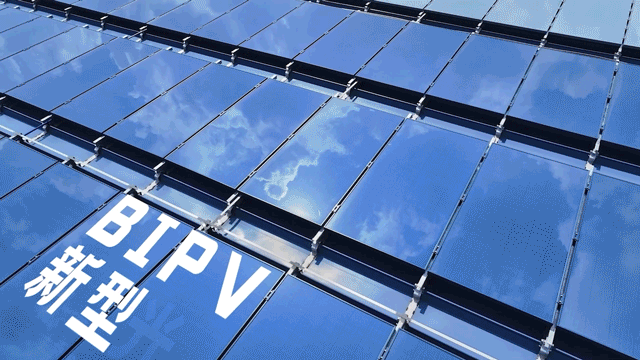

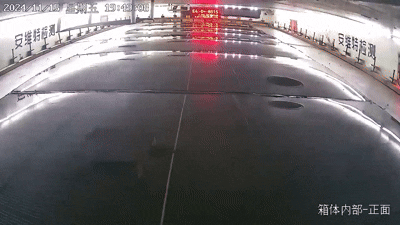

值得关注的是，LIGHT系列产品自带不锈钢背板结构，静态抗风荷载测试达15.4KPa；加之独特的固定工艺，大幅提升结构强度，安装后具备17级台风抵御能力，为建筑筑牢安全防线。
It is worth noting that the LIGHT series products are equipped with a stainless steel backplate structure. The static wind load test reaches 15.4 KPa. Coupled with the unique fixation process, the structural strength is significantly enhanced. After installation, it has a 17-level typhoon resistance capability, effectively fortifying the safety defense line of the building.

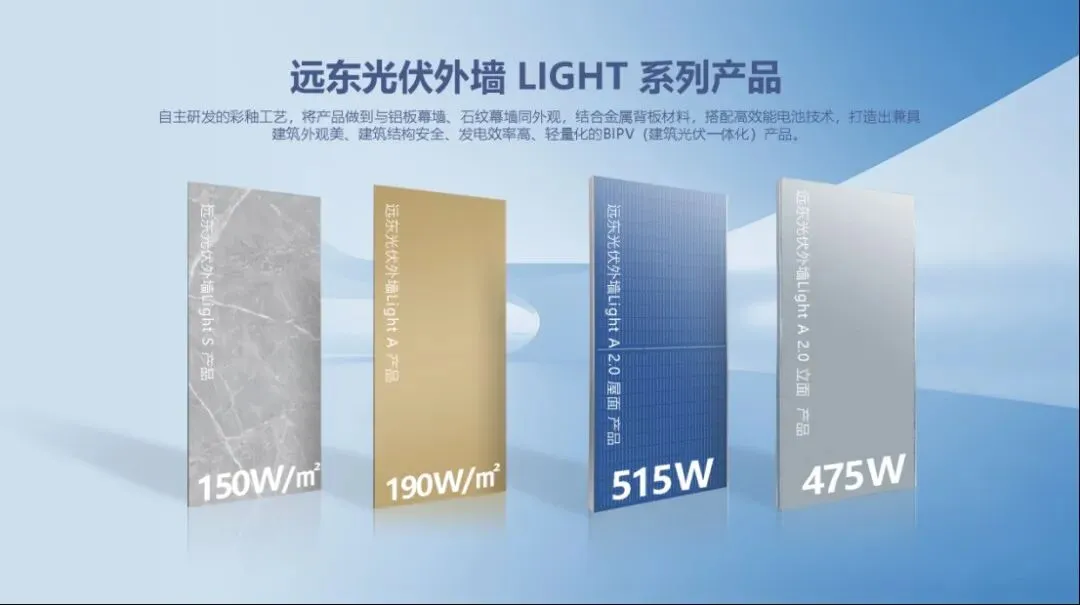

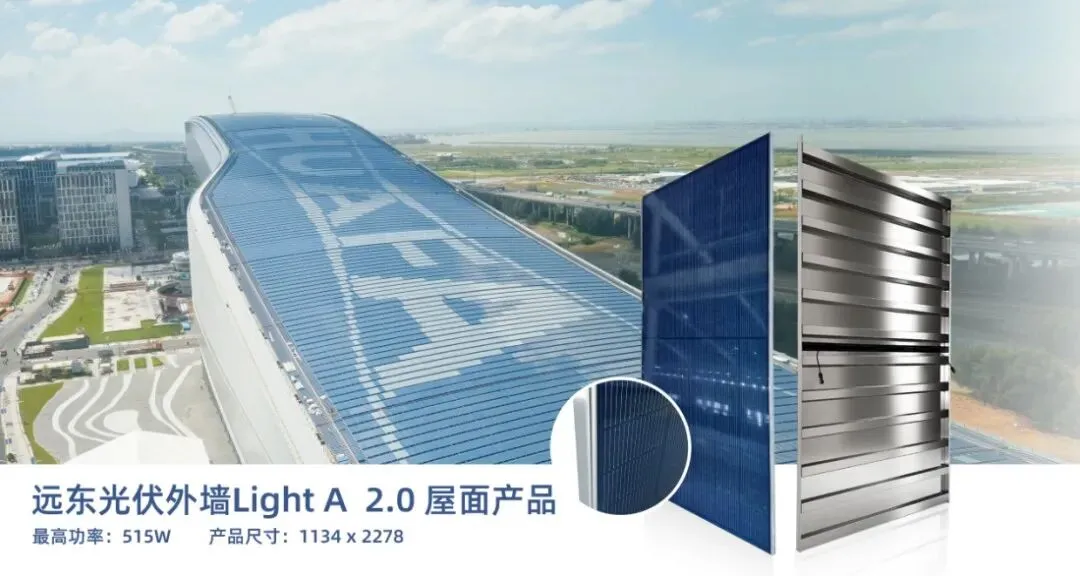

每年预估发电量：633万度电，满足20%用电；年减碳5100吨组件型号：LIGHT A 2.0（自研），1200×600mm模块化 产品功率：蓝色：195W/㎡ 、白色：180W/㎡抗风/抗震：抗17级台风（桦加沙过境无损）、8度抗震、9.1kPa风压设计 釉料工艺：自研微米级彩釉，1200℃烧结，25年不褪色；浅蓝底+白色点状镂空，透光率18%、发电效率20% 针对深圳·前海冰雪世界对光伏系统在美观度、发电效率及抗风压安全性能上的多重严苛要求，传统光伏技术难以全面满足，远东绿能为此量身打造了定制化创新解决方案。
In response to the multiple stringent requirements of the Shenzhen · Qianhai Ice and Snow World for the photovoltaic system in terms of aesthetics, power generation efficiency, and wind resistance safety performance, traditional photovoltaic technology is unable to fully meet these demands. Therefore, Far East Green Energy has specially developed a customized and innovative solution for this purpose.
其自主研发的LIGHT Pro屋面产品突破建筑外墙“耗电大户”的传统认知，自研高温釉料+烧结工艺，实现外表面施釉、透光不透明 ，打造出“会发电的超级屋顶”。
Its independently developed LIGHT Pro roofing product breaks the traditional perception that building exterior walls are "power-consuming giants". By using its own developed high-temperature glaze and sintering technology, it enables the external surface to be glazed and achieve both light transmission and opacity, creating a "power-generating super roof".

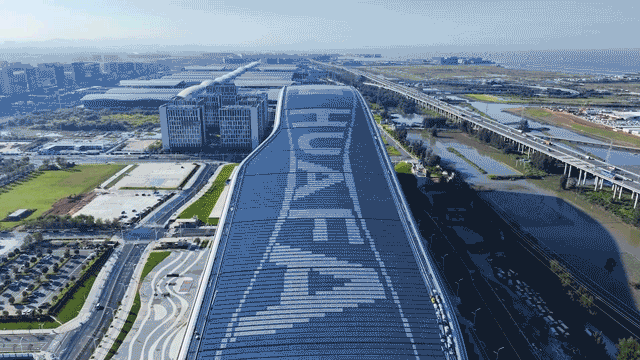

美学上，Light Pro屋面产品采用自主研发的高温彩釉工艺，做到与铝板幕墙同外观。项目通过产品色彩搭配设计，使用蓝色、白色的光伏产品拼接打造品牌LOGO图案，突破传统光伏产品的“全黑”刻板印象，实现全屋发电，将光伏产品转化为城市景观的一部分，真正达成发电性能与建筑美学的深度融合。
Aesthetically, the Light Pro roof products adopt the independently developed high-temperature colored glaze technology, achieving the same appearance as the aluminum plate curtain wall. Through the color combination design of the products, blue and white photovoltaic products are used to assemble and create the brand LOGO pattern, breaking the traditional "all-black" stereotype of photovoltaic products and realizing full-house power generation. The photovoltaic products are transformed into a part of the urban landscape, truly achieving a deep integration of power generation performance and architectural aesthetics.
安全性上，项目位于沿海区域，台风极端天气是不可避免的因素，为满足建筑107米高，9.1kPa风压的设计要求，Light Pro屋面产品结构上实现双重突破：一方面产品采用高强度不锈钢背板设计，提升产品整体刚度和强度，在同等风荷载条件下变形量更小，静态载荷测试达到15.4kPa以上。In terms of safety, the project is located in an coastal area, and extreme weather conditions such as typhoons are inevitable factors. To meet the design requirements of a 107-meter-tall building with a wind pressure of 9.1 kPa, the Light Pro roof product structure has achieved two breakthroughs: On one hand, the product adopts a high-strength stainless steel back plate design, which enhances the overall stiffness and strength of the product. Under the same wind load conditions, the deformation is smaller, and the static load test reaches above 15.4 kPa.另一方面，产品通过连接加强安装，产品四周采用不锈钢外框及背板，全方位满足风压设计要求，可抵御17级台风，使得产品兼具轻量化与高强度的特点。同时，该系列产品已通过TÜV、CE、COC等多项国际权威机构测试及认证，公司累计授权80项专利，以硬核实力满足国际化市场的严苛需求。On the other hand, the product is enhanced by its connection for better installation. The product is surrounded by a stainless steel frame and back panel, fully meeting the wind pressure design requirements and capable of withstanding a typhoon of level 17. This makes the product have both lightweight and high-strength features. At the same time, this series of products has passed numerous international authoritative tests and certifications from institutions such as TÜV, CE, and COC. The company has cumulatively obtained 80 patents, demonstrating its strong capabilities to meet the stringent demands of the international market.能碳双控 智慧零碳技术体系
项目采用主动式节能设计策略，构建“冰蓄冷+智能调控”的能源管理系统，利用夜间低谷电价，巨型蓄冰罐悄然凝结“冷能量”，白天释放冷能量满足雪场制冷需求，可降低30%的峰期电力负荷。
The project adopts an active energy-saving design strategy, establishing an energy management system of "ice storage cooling + intelligent regulation". By taking advantage of the low electricity prices during the night, the huge ice storage tank gradually accumulates "cold energy", which is then released during the day to meet the cooling demands of the ski resort, thereby reducing the peak electricity load by 30%.
此外，项目依托复杂的制冷造雪机电体系和全屋大跨度冷库板体系，实现在亚热带地区持续低温造雪，“零漏冷”冷库节点技术和光伏金属屋面使项目年发电量可达736万度，实现节能与功能的有机结合。
In addition, the project relies on a complex refrigeration snow-making electrical system and a large-span cold storage panel system throughout the house. It is capable of continuously creating snow at a low temperature in subtropical regions. The "zero cold leakage" cold storage node technology and the photovoltaic metal roof enable the project to generate 7.36 million kilowatt-hours of electricity annually, achieving an organic combination of energy conservation and functionality.

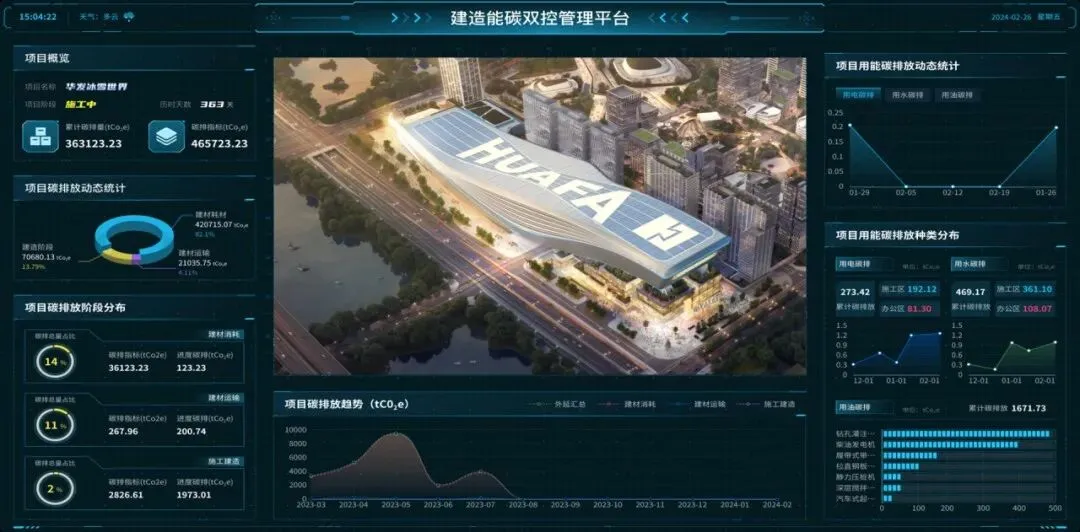

在中控室内，大屏幕上跳动着多个数据流。这是项目同时部署的能碳双控管理平台，对全场5000余个能源监测点进行实时监控，通过这个“智慧大脑”的AI算法优化设备运行参数，使整体能耗较传统冰雪场馆降低40%以上。
In the central control room, multiple data streams are flashing on the large screen. This is the dual-energy carbon control management platform deployed simultaneously for the project. It conducts real-time monitoring of over 5,000 energy monitoring points throughout the venue. Through the AI algorithms of this "smart brain", it optimizes the operating parameters of the equipment, reducing the overall energy consumption by more than 40% compared to traditional ice and snow venues.

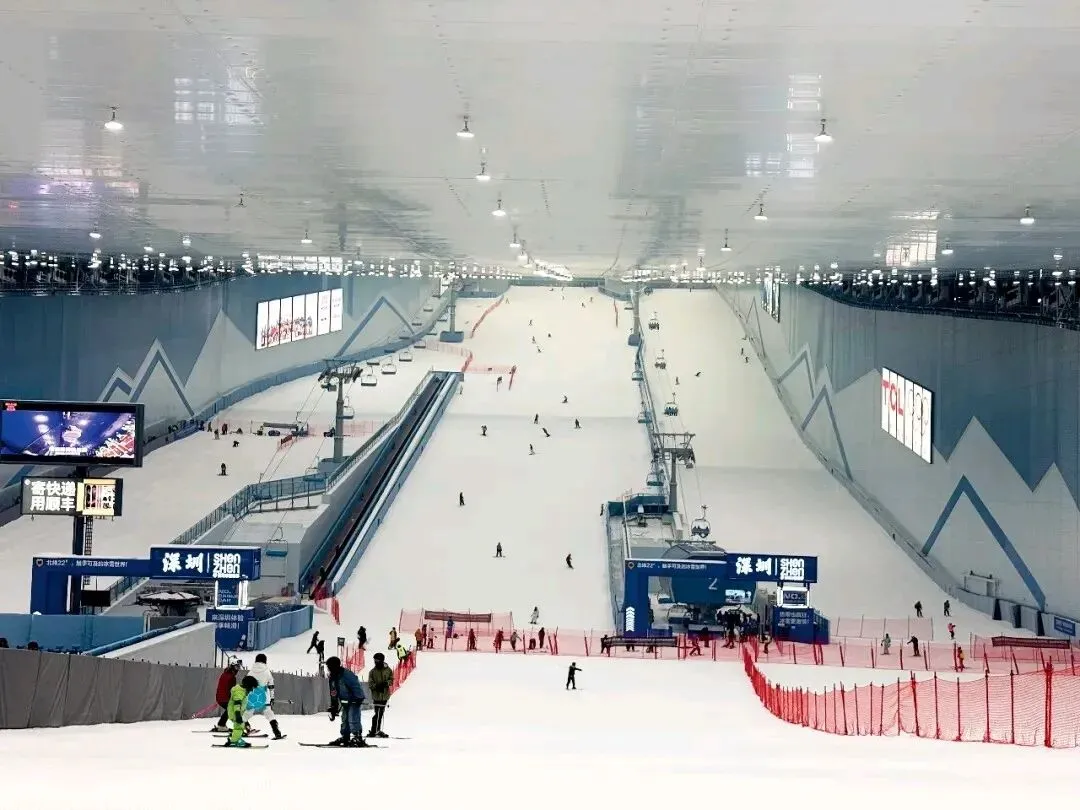

△深圳华发冰雪热雪奇迹内景 摄影/王诗涵
同时，为突破传统冰雪场馆“高耗能”的固有认知，项目构建了涵盖能源生产、消耗、回收全链条的零碳技术体系，目前达到LEED金级认证标准。
At the same time, in order to break through the conventional perception that traditional ice and snow venues are "highly energy-consuming", the project has established a zero-carbon technology system covering the entire chain of energy production, consumption and recycling. Currently, it has reached the LEED Gold certification standard.
项目设计相关图纸

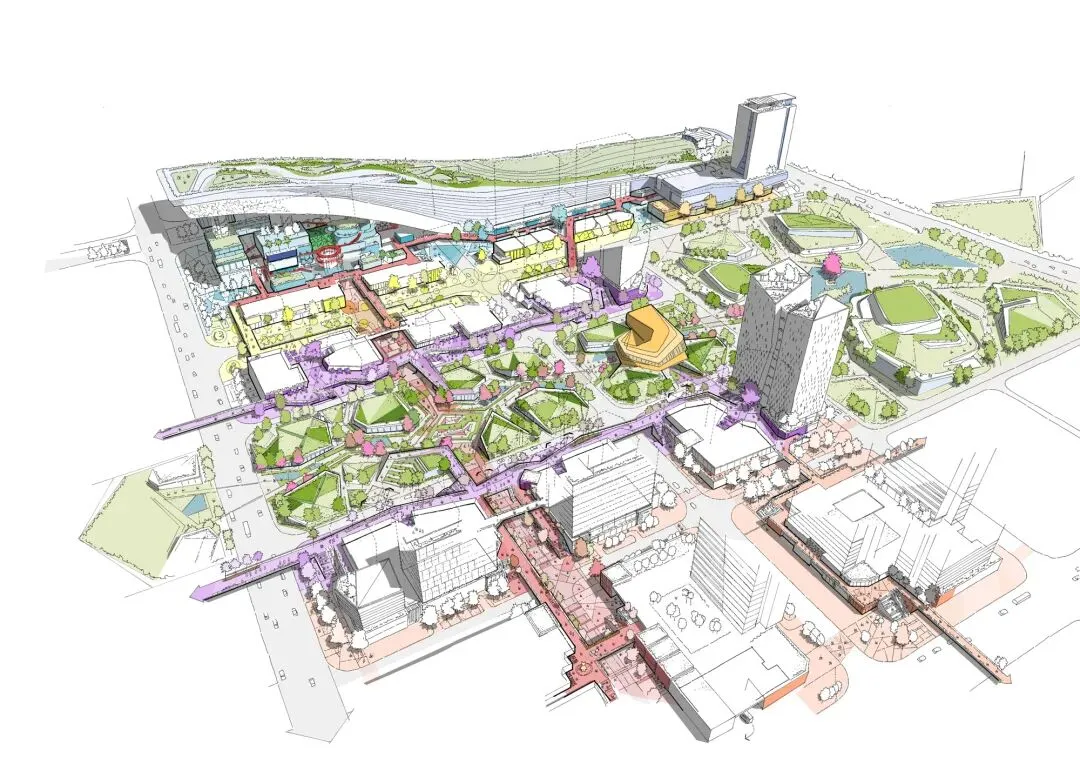

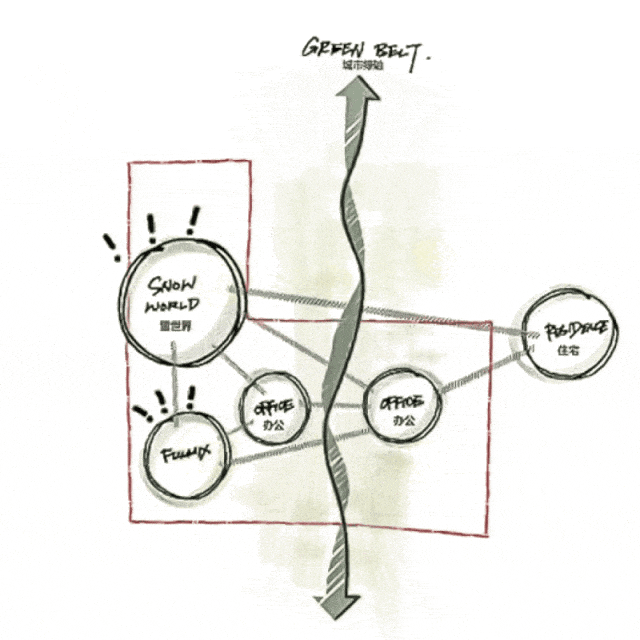

△项目总体规划理念示意

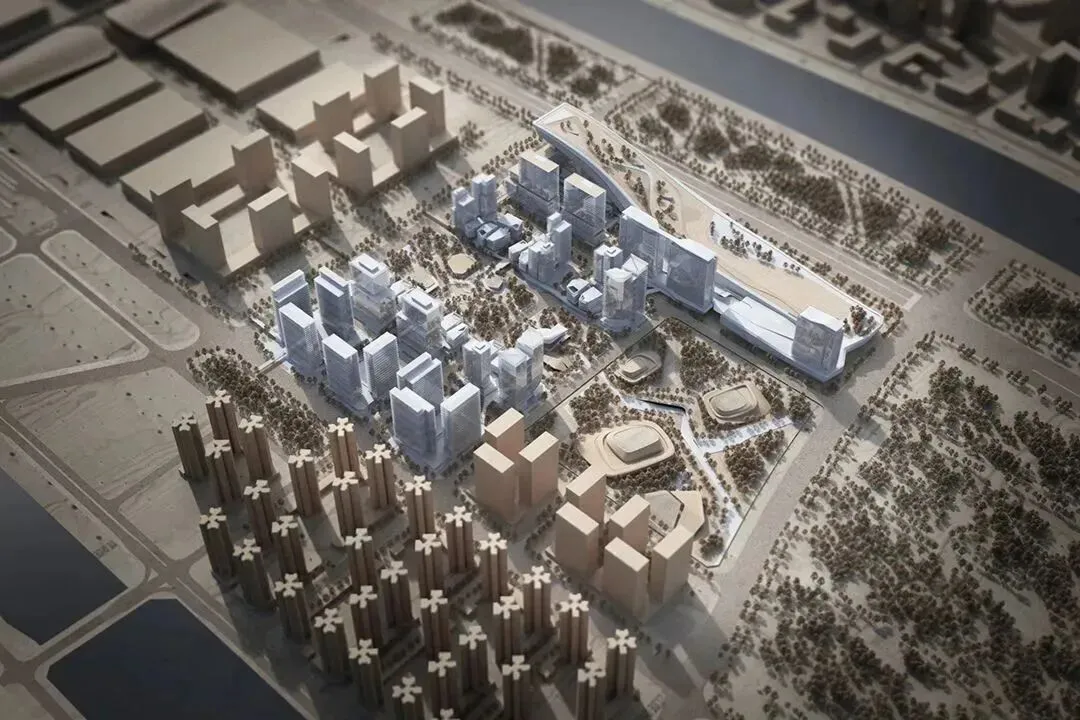

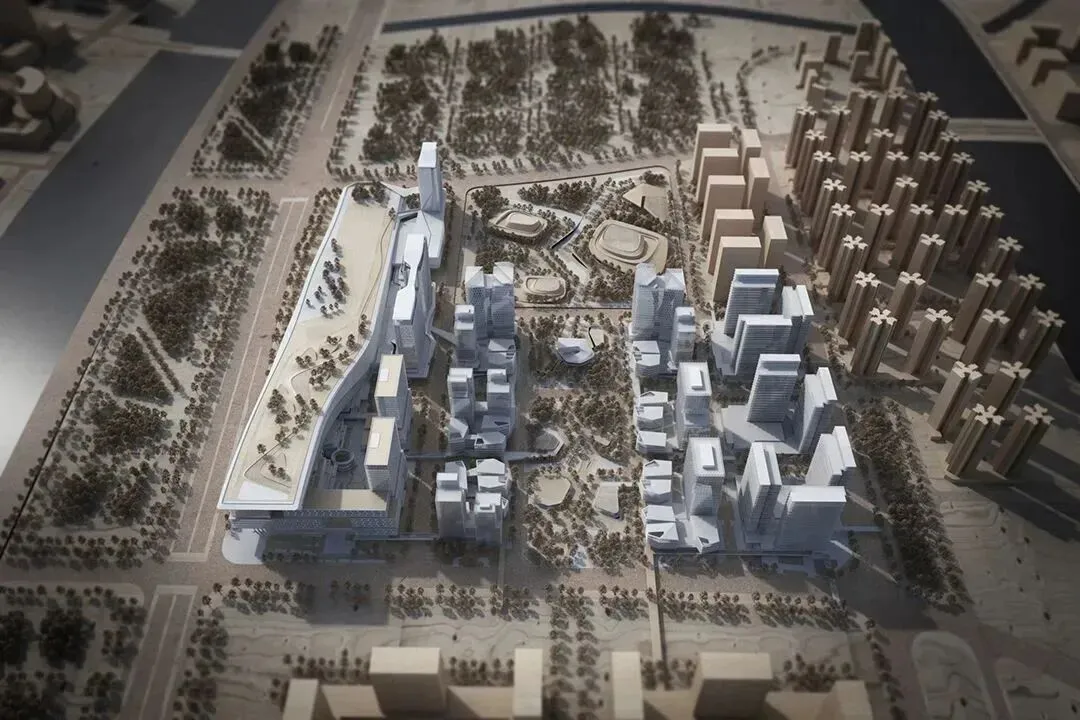

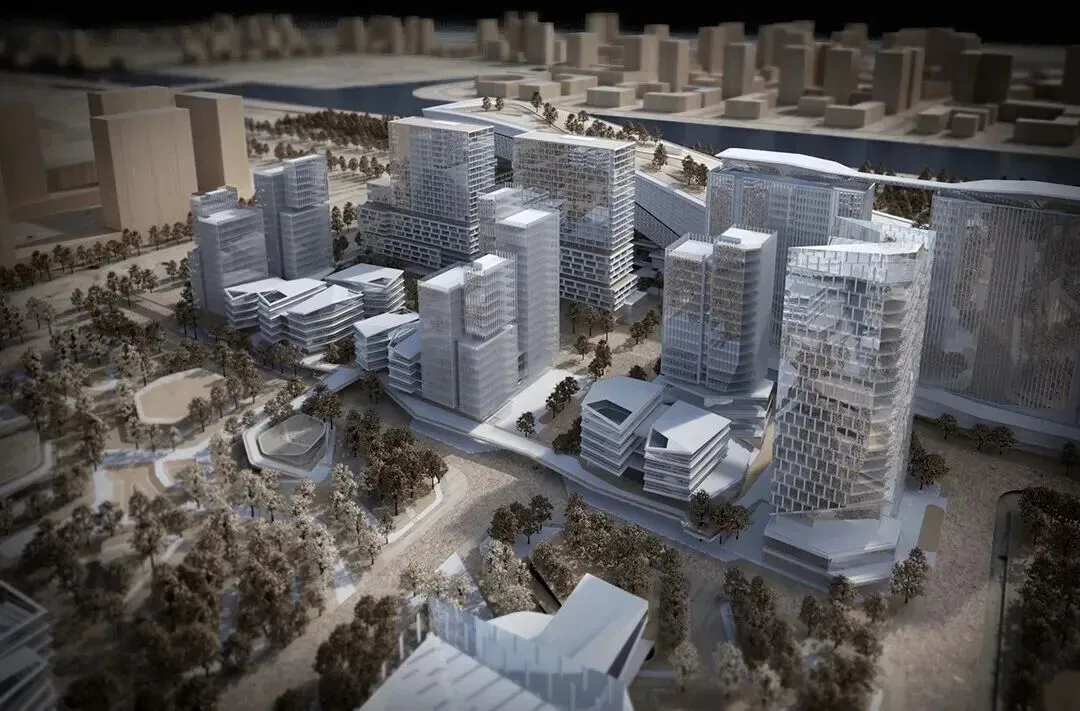

△总体规划模型
△建筑立面图
△项目幕墙施工组织模拟动图

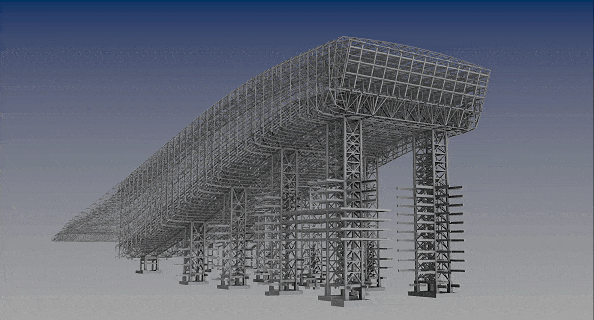

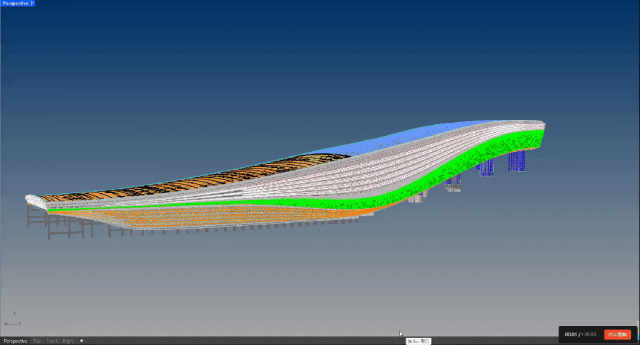

△项目幕墙高精度BIM模型

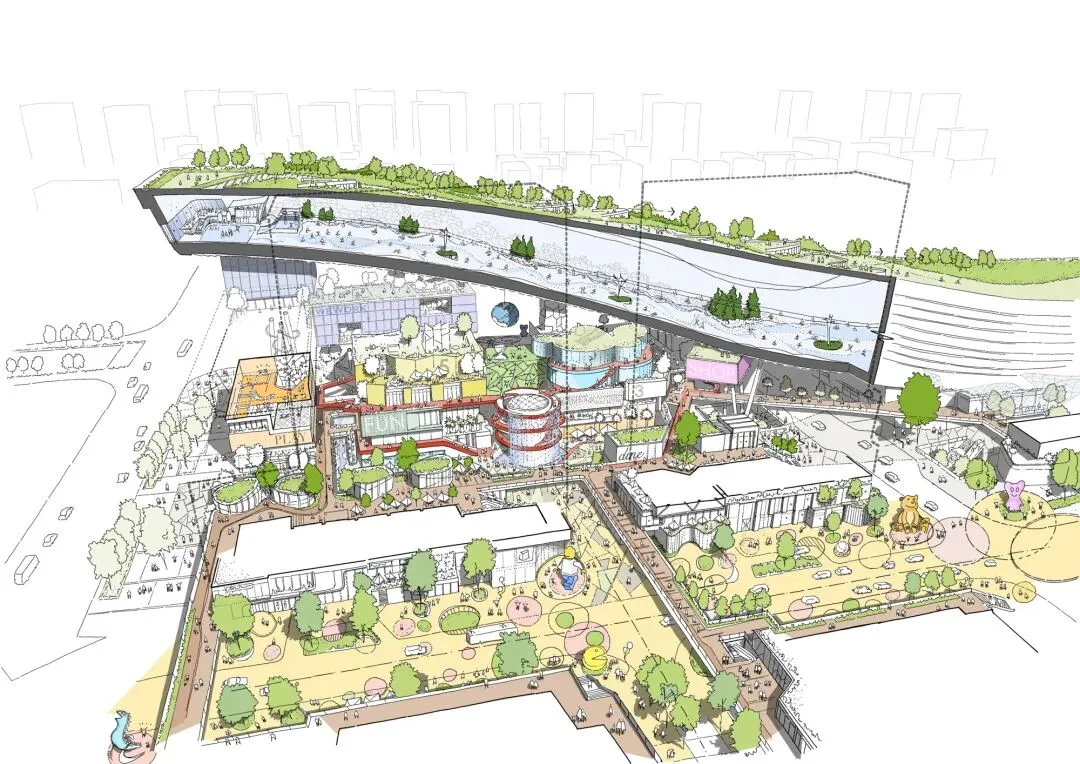

△设计手稿
中国建筑兴业集团(以下简称“公司”)于1969年在香港成立，2010年在香港联合交易所上市(股票代码00830.HK)，2012年被中国建筑国际集团收购，成为中国建筑旗下以建筑幕墙为主业的上市公司。
其核心业务品牌“远东幕墙”是香港历史最悠久的专业幕墙公司，入选世界品牌实验室（World Brand Lab）“亚洲品牌500强”，业务遍及5个大洲、13个国家和地区，102个城市，累计承建了包括迪拜哈利法塔、香港中环美利道2号及深圳OPPO国际总部欧加大厦在内的1000余座幕墙工程。“远东幕墙”拥有行业领先的全供应链管控能力，强化BIM技术与供应链数据深度融合，打造了“数字远东幕墙全生命周期管理平台”，实现从设计、采购、生产、物流到安装的全过程数字化管理。在珠海，“远东幕墙”打造的智能制造基地年产量可达复杂幕墙60万平方米或标准幕墙120万平方米。
公司积极响应国家“双碳”战略目标，推动绿色转型，2024年设立远东绿能科技（广东）有限公司，专注BIPV产品研发和业务，推出光伏外墙LIGHT系列产品，满足绿色建筑设计需求。此外，公司旗下“中海监理”品牌拥有最高监理资质，累计承接项目超1200个。投资运营方面，沈阳皇姑热电是集环保、节能降耗于一体的热电联产企业，直接为沈阳市西北部21万户居民及100多家单位提供供暖服务。
项目名称：深圳前海·华发冰雪世界（超雪中心）
项目地址：深圳宝安区空港新城，紧邻国际会展中心
总建筑面积：约33.93万㎡；超雪中心约10万㎡
建筑高度/跨度：高106m，主桁架跨度107m，无柱空间120m
用钢量：约4.7万吨（超鸟巢）
工期节点：
2024-10：主体封顶
2025-09-29：试运营
2025年底：正式开业
建筑方案：10Design国际事务所
建筑设计：北京维拓时代建筑设计股份有限公司
幕墙/围护设计：中建研科技（中国建筑科学研究院）
BIPV专项设计/供货/施工：中建兴业·远东绿能
钢结构设计：中建三局设计院
施工总承包：中建三局（主体、钢结构、土建、机电、装修）
BIPV专项分包：中建兴业·远东绿能（屋顶3.5万㎡ BIPV系统）
钢结构施工：中建三局（4.7万吨，地面拼装+整体提升）
业主：深圳融华置地投资有限公司
雪场运营：深圳华发冰雪体育有限公司
商业/酒店运营：华发股份旗下商业运营公司
项目荣誉：深圳市绿色建筑示范工程、零能耗建筑认证，TÜV/UL/SGS认证，抗风/防水/耐候全项通过
